The size of brake pulley could be decided through consultation.

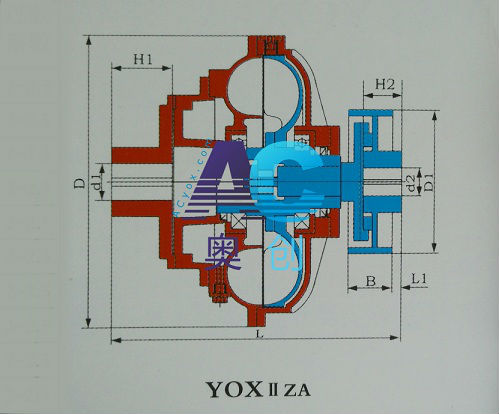

| 型號Type No. |
Lmin |
D | L1 | 輸入端Input side | 輸出端Output side | 制動輪Brake pulley | 充油量Oil filling(L) | 重量(不包括油)Weight w/o oil(kg) |
最高轉速M(fèi)ax. speed(r/min) |
過載系數 Over- load ratio |
||||
| d1max | H1max | d2max | H2max | D1 | B | max. | min. | |||||||
| YOXIIZA400 | 556 | Ø480 | 10 | Ø70 | 140 | Ø70 | 140 | Ø315 | 150 | 9.3 | 4.65 | 109 | 1500 | 2~2.5 |
| YOXIIZA450 | 580 | Ø530 | 10 | Ø75 | 140 | Ø70 | 140 | Ø315 | 150 | 13 | 6.5 | 125 | 1500 | 2~2.5 |
| YOXIIZA500 | 664 | Ø590 | 10 | Ø90 | 170 | Ø90 | 170 | Ø400 | 190 | 19.2 | 9.6 | 150 | 1500 | 2~2.5 |
| YOXIIZA560 | 736 | Ø650 | 10 | Ø100 | 210 | Ø100 | 210 | Ø400 | 190 | 27 | 13.5 | 201 | 1500 | 2~2.5 |
| YOXIIZA600 | 790 | Ø695 | 15 | Ø100 | 210 | Ø110 | 210 | Ø500 | 210 | 36 | 18 | 260 | 1500 | 2~2.5 |
| YOXIIZA650 | 829 | Ø740 | 15 | Ø125 | 225 | Ø130 | 210 | Ø500 | 210 | 46 | 23 | 383 | 1500 | 2~2.5 |
| YOXIIZA750 | 940 | Ø842 | 15 | Ø140 | 250 | Ø150 | 250 | Ø630 | 265 | 68 | 34 | 478 | 1500 | 2~2.5 |
| YOXIIZA866 | 1040 | Ø978 | 20 | Ø150 | 250 | Ø150 | 250 | Ø630 | 265 | 111 | 55.5 | 645 | 1500 | 2~2.5 |
| YOXIIZA1000 | 1140 | Ø1125 | 25 | Ø150 | 250 | Ø150 | 250 | Ø700 | 300 | 144 | 72 | 847 | 750 | 2~2.5 |
| YOXIIZA1150 | 1300 | Ø1295 | 30 | Ø170 | 350 | Ø170 | 350 | Ø800 | 340 | 220 | 110 | 1052 | 750 | 2~2.5 |
