1．In addition to features of type YOX, YOXII and TVA, this type of fluid coupling is
flame-proof and explosion-proof type, especially designed for fire of explosion hazard, such as coal mine.
2．When H1 and H2 are greater than listed H1max and H2max, L should be increased correspondingly.

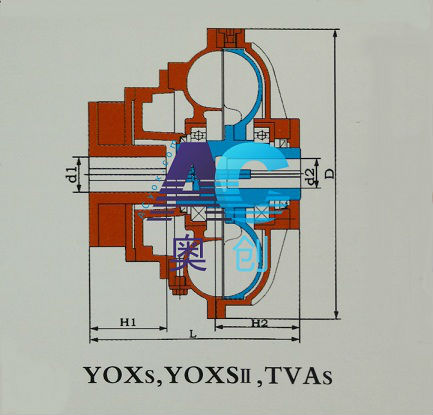

3．The screw inside shaft in figure is optional.
| 型號(hào)Type No. |
Lmin |
D | 輸入端Input side | 輸出端Output side | 充水量Water filling(L) | 重量(不包括水)Weight w/o water(kg) | 最高轉(zhuǎn)速M(fèi)ax.speed(r/min) |
過(guò)載系數(shù) Overload ratio |
|||
| d1max | H1max | d2max | H2max | max. | min. | ||||||
| YOXS400 | 356 | Ø480 | Ø60 | 140 | Ø60 | 150 | 9.6 | 4.8 | 65 | 1500 | 2～2.5 |
| YOXS450 | 397 | Ø530 | Ø75 | 140 | Ø70 | 140 | 13.6 | 6.8 | 70 | 1500 | 2～2.5 |
| YOXS500 | 444 | Ø590 | Ø85 | 170 | Ø85 | 160 | 19.2 | 9.6 | 105 | 1500 | 2～2.5 |
| YOXS510 | 426 | Ø590 | Ø85 | 170 | Ø85 | 160 | 19 | 9.5 | 119 | 1500 | 2～2.5 |
| YOXS560 | 459 | Ø650 | Ø90 | 170 | Ø100 | 180 | 27 | 13.5 | 140 | 1500 | 2～2.5 |
| YOXS562 | 471 | Ø634 | Ø100 | 170 | Ø110 | 170 | 30 | 15 | 131 | 1500 | 2～2.5 |
| TVAS562 | 467 | Ø634 | Ø100 | 170 | Ø110 | 170 | 30 | 15 | 131 | 1500 | 2～2.5 |
| YOXS600 | 474 | Ø695 | Ø90 | 170 | Ø100 | 180 | 36 | 18 | 160 | 1500 | 2～2.5 |
| TVAS650 | 536 | Ø740 | Ø125 | 225 | Ø130 | 200 | 46 | 23 | 219 | 1500 | 2～2.5 |
| TVAS750 | 630 | Ø842 | Ø140 | 245 | Ø150 | 240 | 68 | 34 | 332 | 1500 | 2～2.5 |
