1. This type of fluid coupling is with further enlarged delay chamber, oil-filling time from which
into working circuit is longer. The design enables starting torque to be reduced.
It is applicable to belt conveyors and so on to reduce starting torque, prolong starting time and
have longer life of the belt.

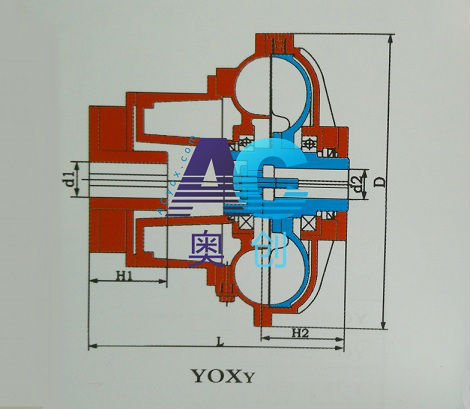

2．The screw inside shaft in figure is optional.
| 型號(hào) Type No. |
Lmin |
D | 輸入端 Input side | 輸出端Output side | 充油量 Oil filling(L) | 重量(不包括油)Weight w/o oil(kg) | 最高轉(zhuǎn)速M(fèi)ax.speed(r/min) |
過載系數(shù) Overload ratio |
|||
| d1max | H1max | d2max | H2max | max. | min. | ||||||
| YOXY360 | 360 | Ø420 | Ø55 | 110 | Ø55 | 110 | 7.1 | 3.55 | 49 | 1500 | 1.2～2.35 |
| YOXY400 | 390 | Ø480 | Ø60 | 140 | Ø60 | 150 | 9.3 | 4.65 | 65 | 1500 | 1.2～2.35 |
| YOXY450 | 445 | Ø530 | Ø75 | 140 | Ø70 | 140 | 13 | 6.5 | 70 | 1500 | 1.2～2.35 |
| YOXY500 | 510 | Ø590 | Ø85 | 170 | Ø85 | 145 | 19.2 | 9.6 | 105 | 1500 | 1.2～2.35 |
| YOXY562 | 530 | Ø634 | Ø90 | 170 | Ø100 | 180 | 27 | 13.5 | 140 | 1500 | 1.2～2.35 |
| YOXY600 | 575 | Ø695 | Ø90 | 170 | Ø100 | 180 | 36 | 18 | 160 | 1500 | 1.2～2.35 |
| YOXY650 | 650 | Ø740 | Ø125 | 225 | Ø130 | 200 | 46 | 23 | 219 | 3000 | 1.2～2.35 |
| YOXY750 | 680 | Ø842 | Ø140 | 245 | Ø150 | 240 | 68 | 34 | 332 | 1500 | 1.2～2.35 |
| YOXY866 | 820 | Ø978 | Ø160 | 250 | Ø160 | 265 | 111 | 55.5 | 470 | 1500 | 1.2～2.35 |
| YOXY1000 | 845 | Ø1125 | Ø160 | 250 | Ø160 | 280 | 144 | 72 | 600 | 1000 | 1.2～2.35 |
| YOXY1150 | 960 | Ø1295 | Ø180 | 280 | Ø180 | 300 | 220 | 110 | 910 | 750 | 1.2～2.35 |
| YOXY1320 | 1075 | Ø1485 | Ø200 | 320 | Ø200 | 350 | 328 | 164 | 1380 | 750 | 1.2～2.35 |
